Why Concealed Showers Are Worth the Extra Effort

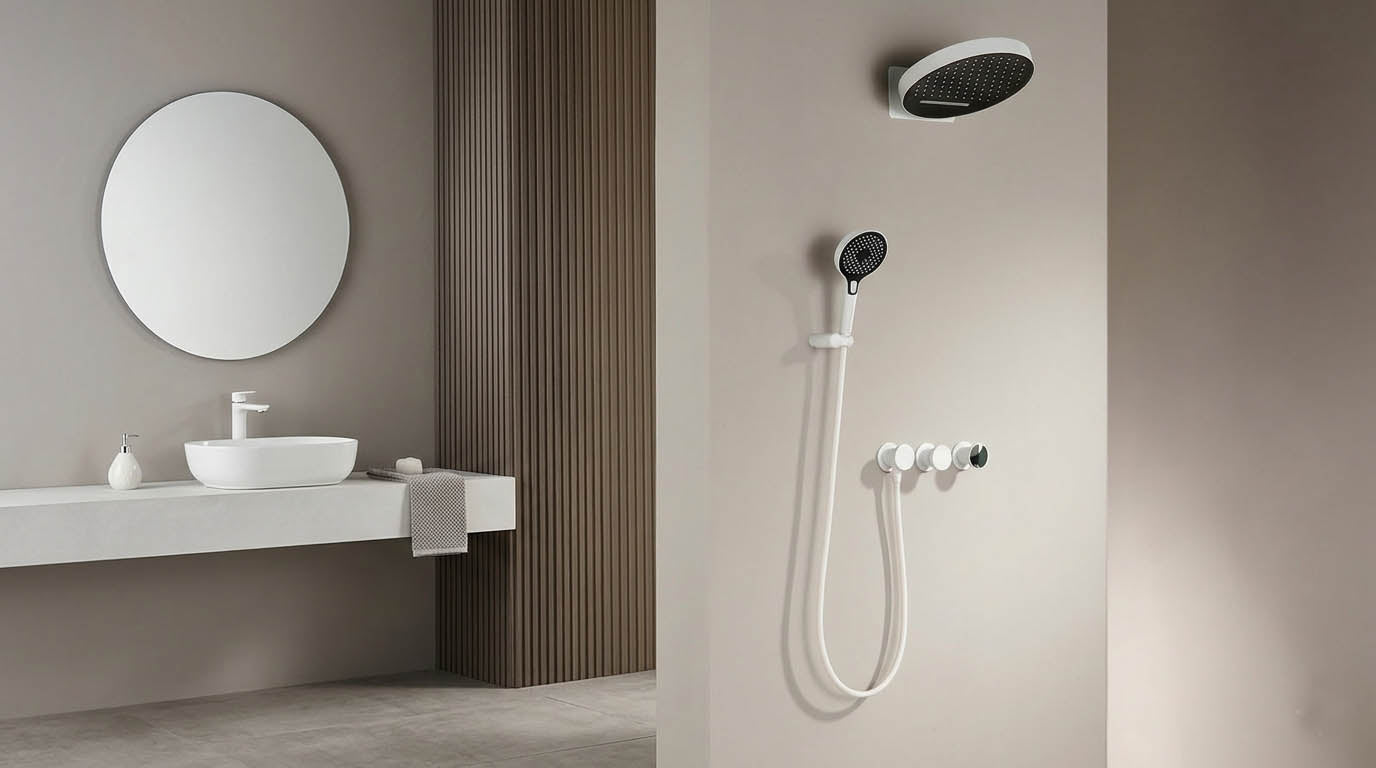

Walk into any high-end hotel bathroom and you'll notice something: no chunky pipes on the wall. No visible hardware fighting for attention. Just clean tile, a sleek panel, and water that flows like a dream. That's the magic of a concealed — or built-in — shower system.
But here's the catch. Because all the plumbing lives inside your wall, installation isn't something you want to wing. A loose connection buried behind tile can cost thousands to fix. The good news? With the right prep and the right steps, this is absolutely doable — and the result is a bathroom that feels genuinely luxurious.
This guide walks you through the entire process: from tools and planning, to pressure testing, to final assembly after the tile is dry. Let's get into it.
Part 1: Before You Touch a Wall — The Prep That Saves You
Gather Your Tools First
Don't start demo until everything is on your workbench. You'll need:
• Power drill
• Laser or bubble level
• Pipe fusion tool (for PPR/PEX connections)
• Thread seal tape (PTFE / plumber's tape)
• Tape measure and pencil
• Channel-lock pliers and adjustable wrench
• Waterproofing membrane or paint
Also: read the product manual cover to cover before touching anything. Different brands have different tolerances. What works for one system may not work for another.
Know Your Wall — This Is Critical
The valve body (the heart of the system) needs space. Most concealed valve bodies require a wall cavity depth of 75–100 mm (3–4 in). Check your wall type before you commit:
• Stud-framed drywall: Usually fine, but may need blocking added between studs.
• Solid masonry or concrete: You'll be chiseling. Plan extra time.
• Load-bearing walls: Confirm with a professional before cutting deep grooves.
If your wall isn't deep enough, the solution is simple: build out a false wall using cement board. You'll gain the depth you need, and as a bonus, you can turn that extra space into a recessed shower niche. Style and function — not a bad trade.
Check Your Water Pressure
Thermostatic valves (the kind that keep your water at a steady temperature) are sensitive to pressure imbalances. Before installation, verify:
• Cold and hot water supplies are close in pressure
• Static water pressure falls between 1.5–5 bar (0.15–0.5 MPA)
• If pressure is low, a small pump booster can solve it
Skipping this step is one of the most common reasons thermostatic cartridges fail early. Check it now — not after everything is tiled.
Part 2: Step-by-Step Installation
Step 1: Mark Your Layout on the Wall
Start with your floor finish line. Using a chalk line or laser level, mark the height of your finished floor (after tile). This single line anchors everything else — if it's off, your whole layout is off.
From there, mark your component heights. These are standard starting points, but adjust based on the height of the people using the shower:
• Thermostatic / mixer valve center: 100–110 cm (39–43 in) from finished floor
• Overhead rain shower: 210–220 cm (83–87 in) from finished floor
• Hand shower bracket: 140 cm (55 in) from finished floor
Use a level — not your eye — to draw these lines. The most common rookie mistake is a control panel that's slightly crooked. You'll notice it every single morning.
Step 2: Cut the Wall Grooves (Chasing)
Using a wall chaser or angle grinder, cut grooves along your marked supply lines. For most concealed systems, grooves should be:
• 50–60 mm deep (2–2.4 in) for the pipe channel
• Wide enough for your pipe diameter plus a small clearance
After cutting, clean out all dust and debris. Then apply a layer of waterproofing membrane inside the groove before laying pipe. This is extra insurance — the kind that pays off years later when everything behind your tile is still bone dry.
Step 3: Install the Rough-In Box (Valve Body)
This is the most important step of the entire project. The rough-in box is what holds your valve cartridge and connects to your supply lines. Everything else mounts onto it.
The "flat and straight" rule: Mount the box so its face is perfectly flush with the future tile surface — not the current bare wall. Account for tile thickness (typically 10–15 mm / 0.4–0.6 in) when setting depth. The box should be:
• Level left-to-right: no more than 2° of tilt
• Plumb front-to-back: no more than 3° of lean
Use a level in both directions. Secure with screws or expansion anchors. Double-check before moving on — this is the one thing you cannot easily fix once tile is up.
Connection note: Hot supply goes on the LEFT, cold on the RIGHT. This is the international standard, and it's not optional — especially for thermostatic valves. Reversing it can damage the cartridge permanently.
Step 4: Run and Connect Your Supply Pipes
Whether you're using PPR, PEX, or copper pipe, the connection process follows the same core rules:
1. Wrap all threaded fittings with 15–20 wraps of thread seal tape, overlapping as you go.
2. For copper: use lead-free solder and proper flux.
Step 5: Flush Your Pipes — Don't Skip This
Before installing the valve cartridge, open the supply valves and run water through the pipes for a few minutes. This flushes out construction debris: grit, pipe shavings, solder flux, whatever ended up in there during rough-in.
This single step accounts for the majority of premature cartridge failures. Installation debris damages the internal seals. Flush the pipes first. Always.
Step 6: Pressure Test (The Moment of Truth)
Before you close up the wall, you absolutely must pressure test. Once tile is on, finding a leak means chipping tile — and that's a bad day.
The standard test:
3. Cap all outlets on the rough-in box.
4. Pressurize the system to 10 bar (1MPA).
5. Hold pressure for a minimum of 30 minutes.
6. Monitor for pressure drop. Acceptable drop: no more than 0.5 bar (0.05 MPA).
Walk the full pipe run and check every connection point for any sign of moisture. Even a tiny bead of water is a fail — find it, fix it, and test again. When it passes, reinstall the protective cover on the rough-in box to keep it clean during tile work.
Step 7: Waterproofing and Tile
With the pressure test passed, apply waterproofing membrane to the surrounding wall area — especially around the rough-in box. Use the product's recommended rubber seal where the box meets the tile surface.
Let tile adhesive and grout cure fully before final assembly. Depending on your products, this can take 24–72 hours. Rushing this step leads to cracked grout and tile movement. Patience here is well spent.
Step 8: Final Assembly — The Satisfying Part
Once tile is set and dry:
7. Trim any excess material from the rough-in box edge flush with the tile.
8. Install the valve cartridge per manufacturer instructions.
9. Attach the trim plate (decorative cover) and control handles.
10. Install the overhead shower arm and head.
11. Mount the hand shower bracket and connect the hose.
Use a wrench to snug all connections, but don't overtighten — you risk cracking the trim plate or stripping threads. Hand-tight, plus a quarter turn.
Part 3: Final Inspection — What to Check Before You Call It Done
Visual Check
Look at the trim plate and control panel from across the room. It should sit flush against the tile with no visible gap wider than 0.5 mm (0.02 in). The handles should point straight. Nothing should wobble or feel loose when you touch it.
Function Check
Turn on all outlets — overhead, hand shower, body jets if applicable — one at a time, then together. Water should flow strong and steady with no sputtering. Adjust the cold-to-hot dial and verify that temperature responds smoothly and consistently.
For thermostatic systems: use an actual thermometer to verify that the 38°C (100°F) preset limit is calibrated correctly. This matters especially in homes with children or elderly users. Adjust the handle stop if needed.
Run a hot/cold cycle test for at least 5–10 minutes. You want to confirm the system behaves consistently — not just for the first 30 seconds.
Leak Check
With all outlets running, let everything flow for 3–5 minutes. Then methodically check:
• Pipe-to-rough-in box connections
• Cartridge seals inside the valve body
• Trim plate-to-tile interface
• Shower arm connection at the wall
• Hand shower hose connections
Pay close attention to floor corners and wall-floor junctions — water has a way of traveling along surfaces before pooling somewhere unexpected. Any drip, any damp spot, is something to fix now — not after the next shower.
Part 4: Pro Tips That Separate Good Installs from Great Ones
Choose the Right Pipe Material
PEX tubing is fast to install and flexible — great for residential re-pipes. But for a concealed shower system buried in a wall, consider stainless steel-lined or high-quality copper pipe. They handle thermal expansion better, and there's something reassuring about metal behind your tile for the next 20 years.
Label Your Valves
At the main shutoff panel, label which valve controls the shower supply. This takes 30 seconds and saves enormous confusion if a repair is ever needed in a hurry. Future-you, again, sends thanks.
Common Questions
Do I have to open the wall if my concealed shower leaks?
Not necessarily. If the leak is coming from the cartridge or valve body, you can usually remove the trim plate and handles, swap out the cartridge, and reseal without touching a single tile. If the leak is from the supply pipes inside the wall, localized tile repair will likely be needed — which is exactly why the pressure test before tiling is so important.
My wall isn't deep enough. What do I do?
Build a false wall. Frame out 100 mm (4 in) of extra depth using moisture-resistant cement board, waterproof it thoroughly, and tile over it. While you're at it, plan a recessed niche in the same false wall for shampoo and soap storage. Problem solved, storage gained.
Can I install a concealed shower over an existing tiled wall?
In theory, yes — but it's messy. You'd need to remove tiles in the work zone, cut into the substrate, do the rough-in, waterproof, and re-tile. For most people, it's easier and cleaner to plan a concealed system during a full bathroom renovation when the walls are already bare.
Final Thoughts
A concealed shower system isn't just a fixture — it's a commitment to the long game. Done right, it lasts decades without a problem. Done carelessly, it becomes a tile-cracking, wall-opening nightmare.
The good news is that the process is straightforward when you follow the sequence: measure carefully, mount level, flush the pipes, pressure test before tiling, and verify every connection at the end. Twelve words. That's the whole philosophy.
Get this right, and every morning shower becomes something you actually look forward to — instead of a daily reminder of a problem you put off fixing. That's what premium home design is really about.
